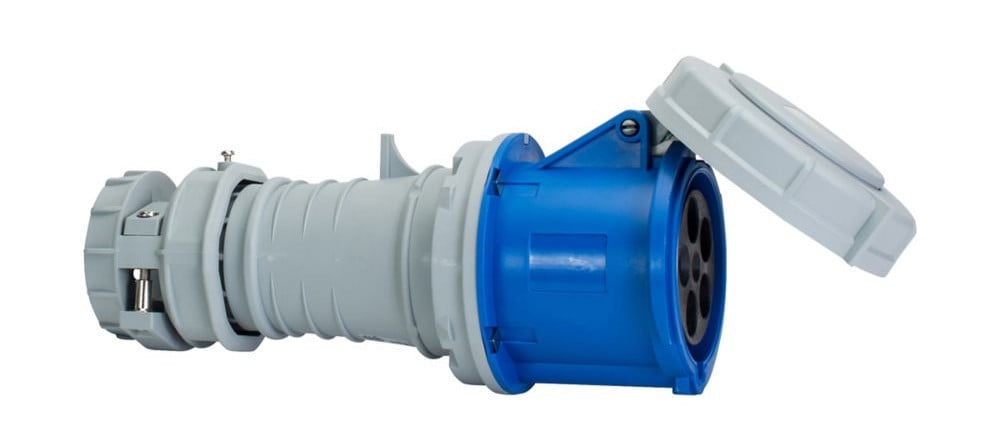

Eaton Arrow Hart

AH560C9W

pin and sleeve connector

quantity of 2

• IP69K Rated--The IP69K rating is designed to tackle high pressure, high temperature washdown applications. The “6” applies to external protection from dust. The “9” signifies protection from close-rangehigh pressure spray downs, and the “K” applies to the high temperature of the water used. Arrow Hart’s new pin & sleeve devices are designed to face some of the most severe operating conditions, often in the most challenging environments making them ideal for a wide range of markets, including food and beverage, mining, and industrial facilities
• IP67 rated
• #8 - #2 AWG
• #10 - #2 AWG (Ground)
• #12 - #16 AWG (Pilot)
• 60A
• 120/208V 3ØY
• Nickel plated brass contacts
• IP67
• Nylon, Blue
• 4-pole, 5-wire, grounding
• 0.66-1.5in (1.68-3.81cm) cord diameter
• Female
• 5 HP horsepower rating
• 11.5 inches long x 5.125 inches high x 5.125 inches wide
