Signify

Day-Brite FluxPanel

2FPZ30L850-4-DS-UNV-DIM

2 ft by 4 ft LED Panel

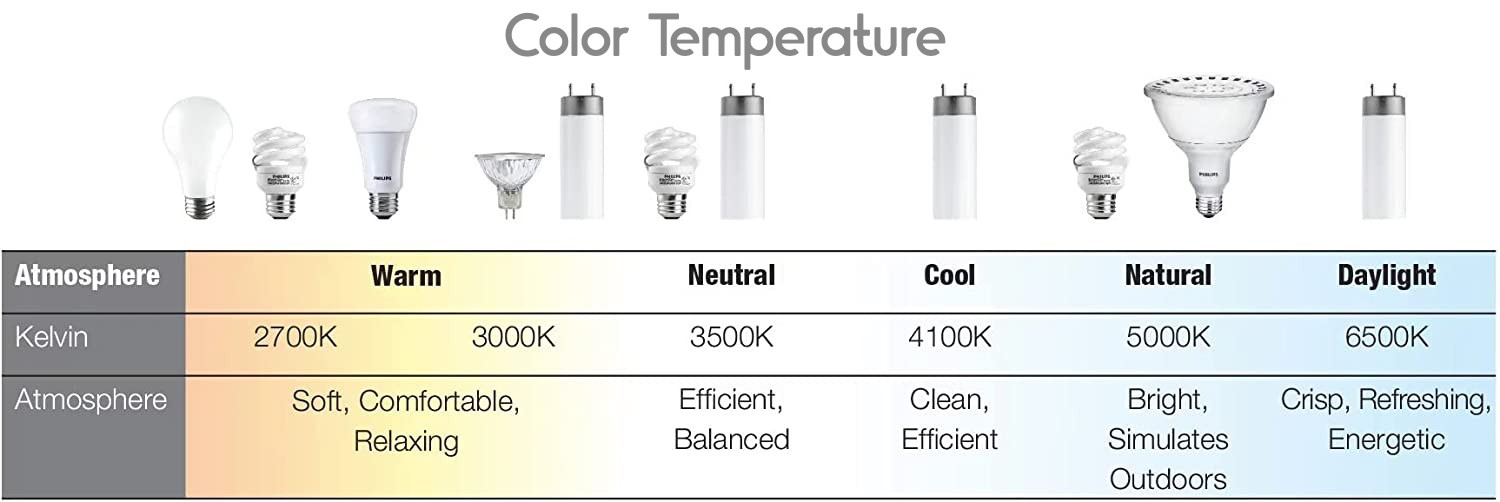

• 3000 Lumens, 5000K Color Temp, 80 CRI
• 2 feet by 4 feet (2x4)
• Diffuse Smooth
• Dimmable 0-10V dimming to 1%
• 3 " overall depth, including driver box.
• Even distribution of light on the lens provides exceptionally low glare gradient minimizing distractions at the ceiling plane.
• General light distribution creates uniform horizontal and vertical illuminance on the work plane and limits scalloping on the walls.
• Excellent consistency of correlated color temperature (CCT) per ANSI C78.377.
• CRI 80 minimum color rendering with balanced spectrum.
• Designed for use with standard Grid (NEMA "G") or Narrow Grid (NEMA "NFG") ceiling T-bars. Drywall or plaster application require use with the FMA24 "F" mounting frame accessory (sold and shipped separately).
• Accessory field install kits available for surface (FSF24) and suspended (FPZCH48) mounting
• Die formed galvanized steel housing.
• Extruded aluminum frame post painted with gloss white enamel finish. Corners are precision welded for seamless aesthetic.
• Die formed driver box with standard access plate for ease of wiring, provides tool-free access to driver(s) from above.
• Backlit LED arrays with optics provide highly efficient and unpixelated transfer of light to the lens.
• Integral clips accommodate definitive attachment to T-bar grid for recessed applications.
• Die formed surface box accessory kit post painted gloss white enamel.
• Diffuser provides visual comfort and high efficiency.
• Flat opal lens is easy to clean and provides a uniform aesthetic on the ceiling plane.
• Tight enclosure assembly impedes ingress of dust and insects
